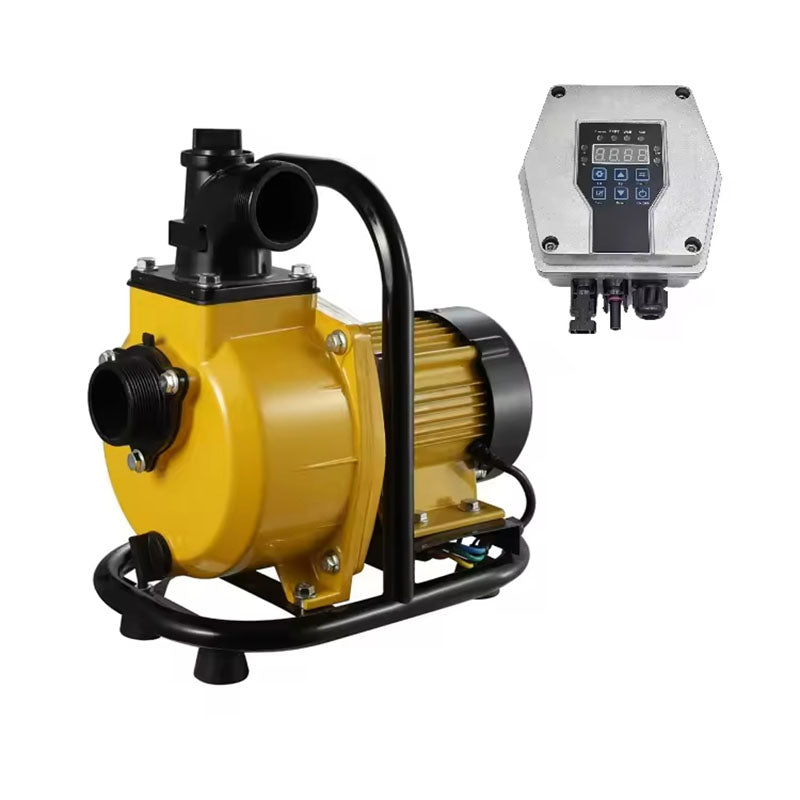

0.5HP 36V DC Solar Surface Pump - 30m Head Water Transfer Pump for Garden

0.5HP 36V DC Solar Surface Pump - 30m Head Water Transfer for Garden & Irrigation

The NOVAPUMP 0.5HP 36V DC Solar Surface Pump delivers reliable water transfer directly from solar panels without batteries or inverters. Designed for garden irrigation, small-scale farming, and livestock watering in off-grid locations, this pump provides a sustainable, zero-operating-cost water solution. Its brushless DC motor and MPPT-compatible controller maximize water output across varying sunlight conditions.

Technical Specifications

• Power: 0.5HP (370W DC)
• Voltage: 36V DC (compatible with 2 x 300W solar panels in series)
• Max Flow Rate: 4,500 L/h (19.8 GPM)
• Max Head: 30 meters (98 ft)
• Inlet/Outlet: 1 inch threaded
• Motor Type: Brushless DC, permanent magnet
• Controller: Built-in MPPT with dry-run protection, soft start, and overload protection
• Material: Cast iron pump body, stainless steel impeller
• IP Rating: IP54
• Weight: 8.5 kg

Key Features

• Solar Direct Operation: Connect directly to solar panels - no battery or inverter needed
• MPPT Smart Controller: Maximizes water output in low-light conditions (dawn, overcast)
• Dry-Run Protection: Automatically shuts off if water source runs dry, restarts after 30 minutes
• Low Maintenance: Brushless DC motor has no brushes to replace - rated for 20,000+ operating hours
• Zero Operating Cost: After installation, electricity cost is zero - powered entirely by the sun

Applications

Garden drip irrigation, greenhouse watering, small farm irrigation, livestock water supply, pond and fountain circulation, and remote cabin water transfer.

FAQs

Q: How many solar panels do I need?
Two 300W 18V panels connected in series (total 36V) are recommended for optimal performance. A single 400W panel works for partial output.

Q: Can it run on batteries?
Yes, the pump also accepts 24-36V DC battery input for night-time or backup operation.

Q: Does it work on cloudy days?
Yes, the MPPT controller adjusts motor speed to match available solar power. Output is proportional to sunlight intensity.

CE Certified | 12-Month Warranty | 2-Year Motor Warranty | B2B Bulk Discounts
