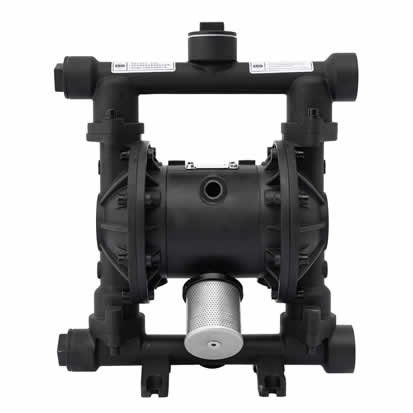

1/2 Inch Aluminum AODD Pump - Air Operated Diaphragm Transfer Pump

1/2 Inch Aluminum AODD Pump - Air Operated Diaphragm Transfer Pump

The NOVAPUMP 1/2 Inch Aluminum AODD Pump is the most compact and cost-effective model in our diaphragm pump range, ideal for low-flow chemical dosing, sampling, and small-volume fluid transfer applications. Despite its compact size, it delivers up to 30 L/min and 84 meters of head - exceptional performance for a pump weighing just 3.2 kg. The aluminum body with standard Santoprene diaphragms provides an economical entry point for AODD pump technology.

Technical Specifications

• Size: 1/2 inch inlet/outlet (threaded NPT/BSP)
• Max Flow Rate: 30 L/min (7.9 GPM)
• Max Head: 84 meters (276 ft)
• Air Supply: 1.5-7 bar (22-101 PSI)
• Air Inlet: 1/4 inch
• Body Material: Aluminum alloy, anodized
• Diaphragm: Santoprene (Buna-N, PTFE options)
• Ball Valves: Santoprene or PTFE
• Max Solids: 2 mm
• Weight: 3.2 kg (7 lbs)

Key Features

• Budget-Friendly: Lowest-cost AODD pump with professional-grade reliability
• Submersible Option: Aluminum body with sealed air exhaust permits submersion (with exhaust pipe extension)
• Precise Flow Control: Simple air regulator adjustment provides infinite flow control from 0 to 30 L/min
• Self-Priming: 5m dry suction lift - no manual priming or foot valve needed
• Explosion-Proof: No electrical components = intrinsically safe for solvent and fuel applications

Applications

Chemical dosing systems, laboratory fluid transfer, ink and dye circulation, small-scale paint spraying supply, and coolant/lubricant transfer.

FAQs

Q: What is the minimum flow rate?
By reducing air pressure, flow can be dialed down to approximately 2 L/min while maintaining consistent pressure.

Q: Can it run continuously?
Yes, up to 8 hours continuous at rated pressure. For 24/7 operation, consider the 1-inch model with larger air motor.

Q: Is it suitable for food products?
Aluminum body is not food-grade. For food applications, select our 1.5-inch sanitary stainless steel model.

CE Certified | 12-Month Warranty | Small Package = Express Air Freight Available
