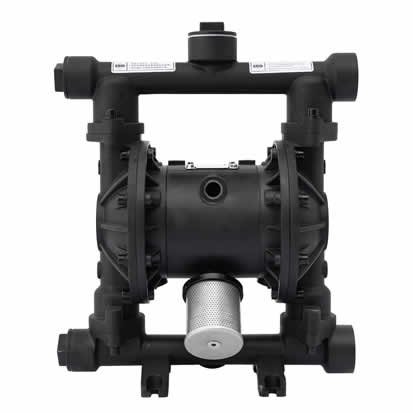

1.5 Inch Nylon AODD Pump - Lightweight Portable Air Diaphragm Transfer Pump

1.5 Inch Nylon AODD Pump - Lightweight Portable Air Diaphragm Transfer Pump

The NOVAPUMP 1.5 Inch Nylon AODD Pump provides the ideal balance of chemical resistance, mechanical durability, and extreme portability. At just 6.8 kg, this is one of the lightest 1.5-inch diaphragm pumps available, while still delivering 280 L/min flow capacity. The glass-reinforced nylon body offers excellent resistance to hydrocarbons, solvents, and mild chemicals at a fraction of the cost of metal pumps.

Technical Specifications

• Size: 1.5 inch inlet/outlet (threaded)
• Max Flow Rate: 280 L/min (74 GPM)
• Max Head: 84 meters (276 ft)
• Air Supply: 2-8 bar (29-116 PSI)
• Body Material: Glass-reinforced nylon (PA66-GF30)
• Diaphragm: Santoprene (Buna-N, PTFE options)
• Ball Valves: Santoprene or PTFE
• Max Solids: 8 mm
• Max Viscosity: 15,000 cP
• Weight: 6.8 kg (15 lbs)

Key Features

• Ultra-Lightweight: At 6.8 kg, it is 55% lighter than aluminum and 70% lighter than stainless steel equivalents
• High Flow Capacity: 280 L/min in a compact footprint - ideal for rapid tank transfer
• Impact Resistant: Glass-reinforced nylon body withstands job site drops and rough handling
• Chemical Versatility: Handles diesel, gasoline, paint solvents, mild acids, and industrial wastewater
• Non-Sparking: Non-metallic body eliminates spark risk during fuel transfer

Applications

Fuel and oil transfer, paint and coating circulation, construction site dewatering, tank truck unloading, and industrial wastewater transfer.

FAQs

Q: Is it suitable for gasoline?
Yes. The nylon body with Buna-N diaphragms is specifically rated for gasoline and diesel fuel transfer.

Q: What air compressor do I need?
Minimum 5HP / 300L compressor delivering 500 L/min free air for full flow operation.

Q: Can it handle hot fluids?
Yes, up to 80 C (176 F) with standard Santoprene diaphragms. PTFE option for up to 100 C.

CE Certified | 12-Month Warranty | Lightweight Shipping = Lower Freight Costs
