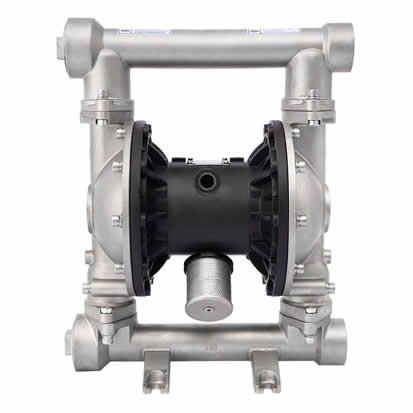

1.5 Inch Stainless Steel Sanitary AODD Pump - CIP Compatible Food Grade Diaphragm Pump

The NOVAPUMP 1.5 Inch Sanitary AODD Pump is built for the food, beverage, pharmaceutical, and cosmetics industries where hygiene and cleanability are paramount. Constructed from 316L stainless steel with sanitary tri-clamp connections and an electropolished interior surface finish (Ra ≤0.8 μm), this pump meets FDA, 3-A, and EHEDG hygienic design standards. The quick-disassembly clamp design enables full CIP (Clean-in-Place) and manual strip-down cleaning in under 10 minutes.

Technical Specifications

• Size: 1.5 inch sanitary tri-clamp (ISO 2852)
• Max Flow Rate: 260 L/min (68.7 GPM)
• Max Head: 84 meters (276 ft)
• Air Supply: 2-8 bar
• Body Material: 316L stainless steel, electropolished Ra ≤0.8 μm
• Diaphragm: FDA-grade PTFE/Santoprene composite
• Ball Valves: 316L SS or PTFE
• Seals: FDA-grade EPDM
• Surface Finish: Internal Ra ≤0.8 μm, external Ra ≤1.6 μm
• Cleaning Standards: CIP, COP, SIP (to 135 C)
• Weight: 18 kg

Key Features

• Full 316L Construction: Superior corrosion resistance for acidic food products and CIP chemicals
• Electropolished Interior: Ra ≤0.8 μm surface finish prevents bacterial adhesion and product buildup
• Quick Disassembly: Wing-nut clamp design enables full disassembly in under 10 minutes without tools
• SIP Compatible: Withstands steam sterilization at 135 C for 30-minute cycles
• Gentle Pumping: Shear-sensitive product handling - ideal for yogurt, cream, cell cultures, and emulsions

Applications

Dairy product transfer, beverage and juice processing, pharmaceutical API and vaccine media, cosmetic cream and lotion transfer, and brewery yeast handling.

FAQs

Q: Is it 3-A certified?
Designed to 3-A Sanitary Standards 44-03. Certification documentation available. Contact us for full compliance documentation.

Q: Can it handle shear-sensitive products?
Yes. AODD pumps provide gentle, low-shear pumping ideal for yogurt, cream, cell cultures, and protein solutions.

Q: What is the lead time?
Standard configuration ships within 7-10 business days. Custom surface finish requirements: 3-4 weeks.

CE & FDA Compliant | 12-Month Warranty | Hygienic Design Documentation Included
