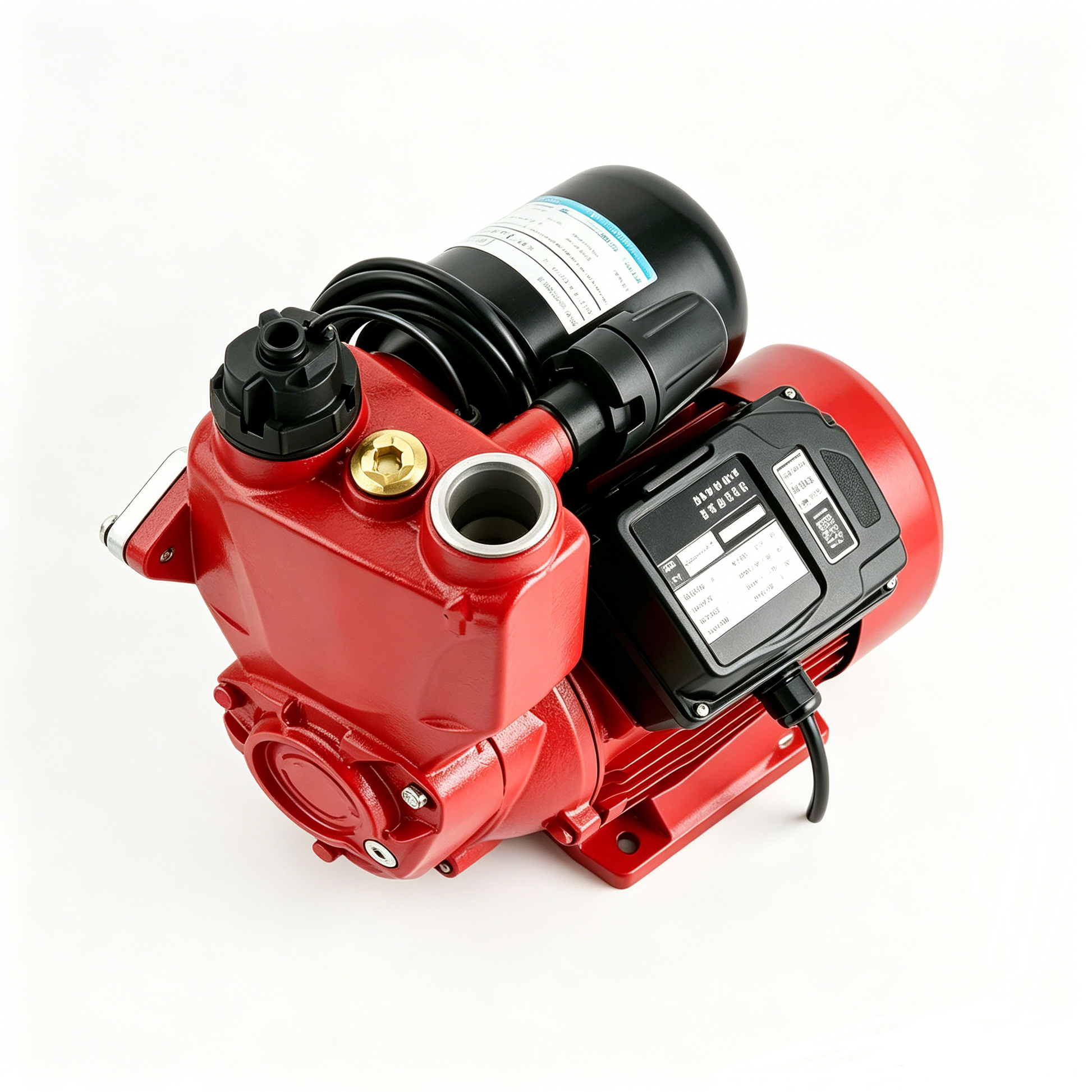

1HP Swimming Pool Booster Pump - 220V Circulation Pump for Pool & Spa

1HP Swimming Pool Booster Pump - 220V Circulation Pump for Pool & Spa

The NOVAPUMP 1HP Swimming Pool Booster Pump is purpose-built for pool and spa water circulation systems. Designed to boost water pressure for pool cleaners, water features, spa jets, and solar pool heating systems, this pump delivers the high flow rates and reliable continuous operation required in residential and commercial pool environments. The corrosion-resistant construction withstands chlorinated and salt water for years of trouble-free service.

Technical Specifications

• Power: 1HP (750W)
• Voltage: 220V / 50Hz (110V/60Hz available)
• Max Flow Rate: 160 L/min (42.3 GPM)
• Max Head: 12 meters (39 ft)
• Inlet/Outlet: 1.5 inch threaded with union connectors
• Motor: Capacitor-start, IP55, Class F insulation, continuous duty
• Pump Body: Glass-reinforced polypropylene with UV stabilizer
• Impeller: Glass-filled nylon, dynamically balanced
• Shaft Seal: Carbon-ceramic mechanical seal (pool-rated)
• Strainer Basket: 1.5L transparent lid, easy-clean design
• Noise Level: <55 dB
• Weight: 7.5 kg

Key Features

• Pool-Optimized Materials: Glass-reinforced PP body and nylon impeller resist chlorinated and salt water corrosion
• Built-In Strainer: Large 1.5L strainer basket with transparent lid catches debris before it reaches the impeller
• Quiet Operation: Encapsulated motor and vibration-damping feet keep noise under 55 dB
• Easy Service: Quick-release union connectors and transparent strainer lid for tool-free maintenance
• Continuous Duty Rated: Designed for 8-12 hour daily operation during pool season

Applications

Swimming pool circulation, spa jet boosting, pool cleaner pressure supply, solar pool heating circulation, waterfall and water feature pumps, and heat pump water circulation.

FAQs

Q: Is it suitable for salt water pools?
Yes. The polypropylene body, nylon impeller, and carbon-ceramic seal are all salt water compatible.

Q: How often should the strainer be cleaned?
Weekly during heavy use (summer). Monthly during light use. The transparent lid allows visual inspection without opening.

Q: Can it run with a pool timer?
Yes, it is compatible with standard pool timers and automation controllers up to 16A relay output.

CE & RoHS Certified | 12-Month Warranty | Free Express Shipping on Pool Pump Orders
