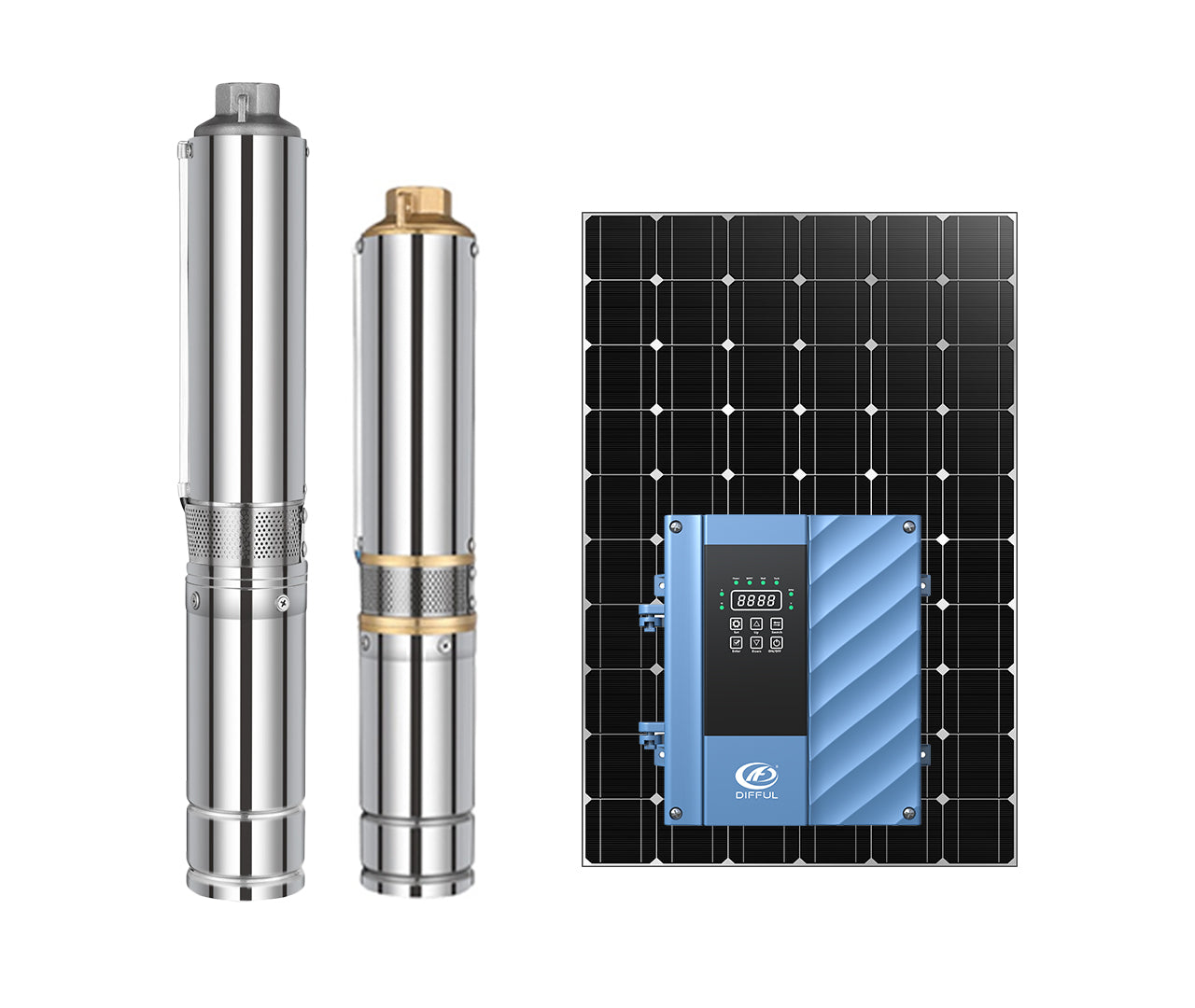

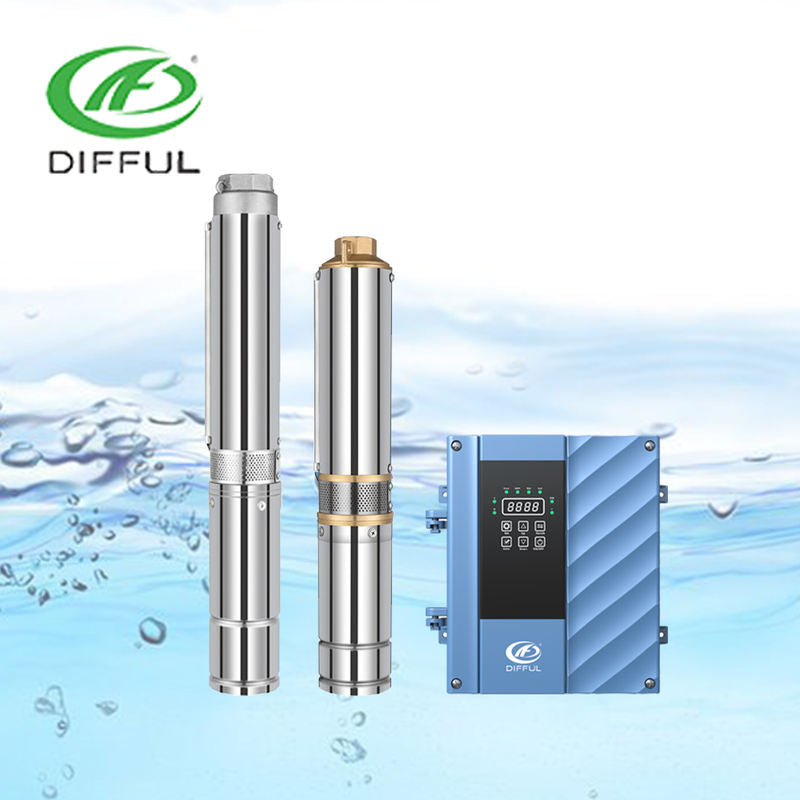

3 Horse Power Solar Water Pump Solar AC DC Hybrid Solar Submersible Pump

3HP Solar AC/DC Hybrid Submersible Pump - 150m Deep Well Solar Water Pump System

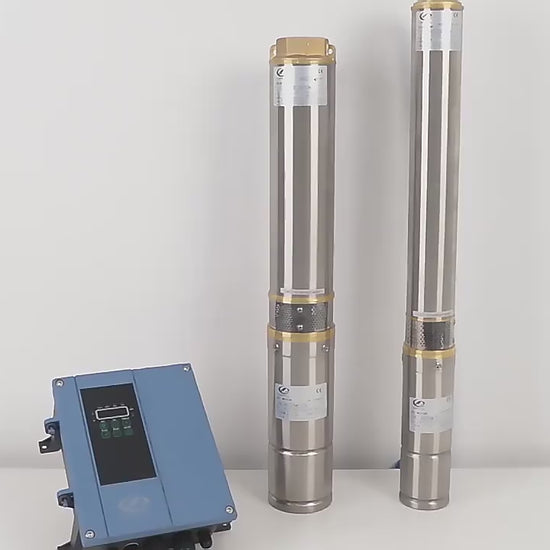

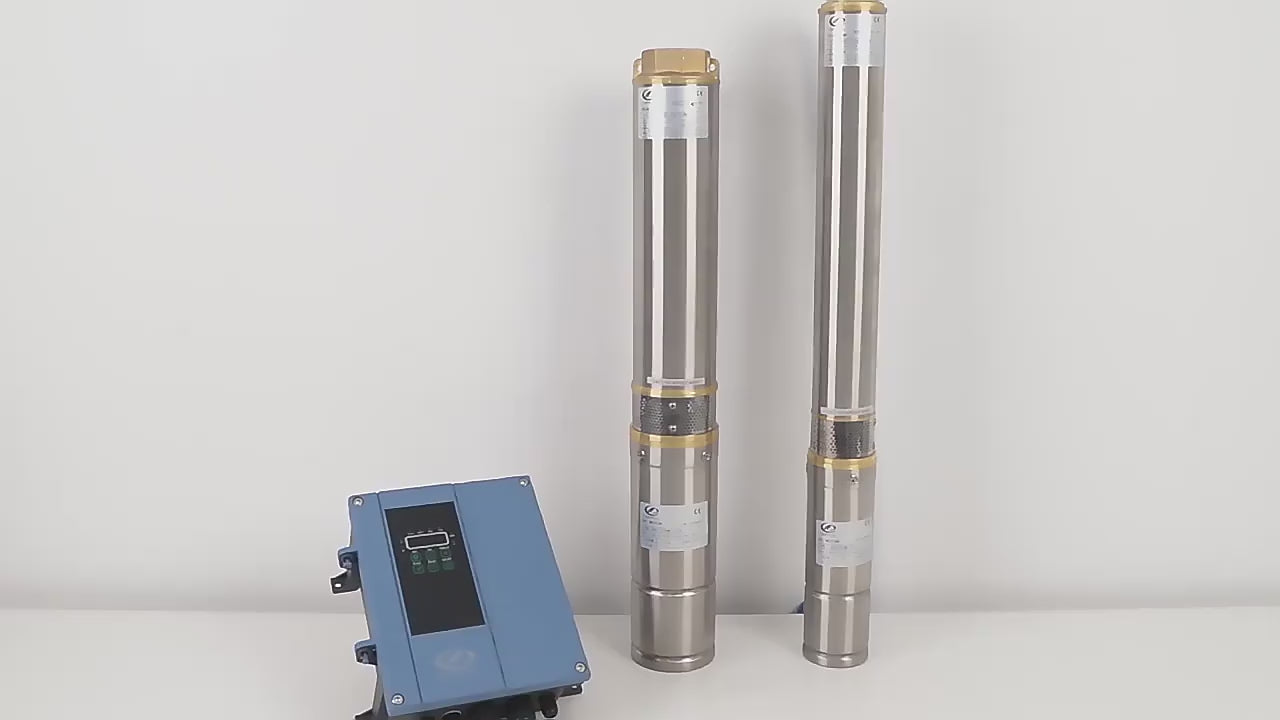

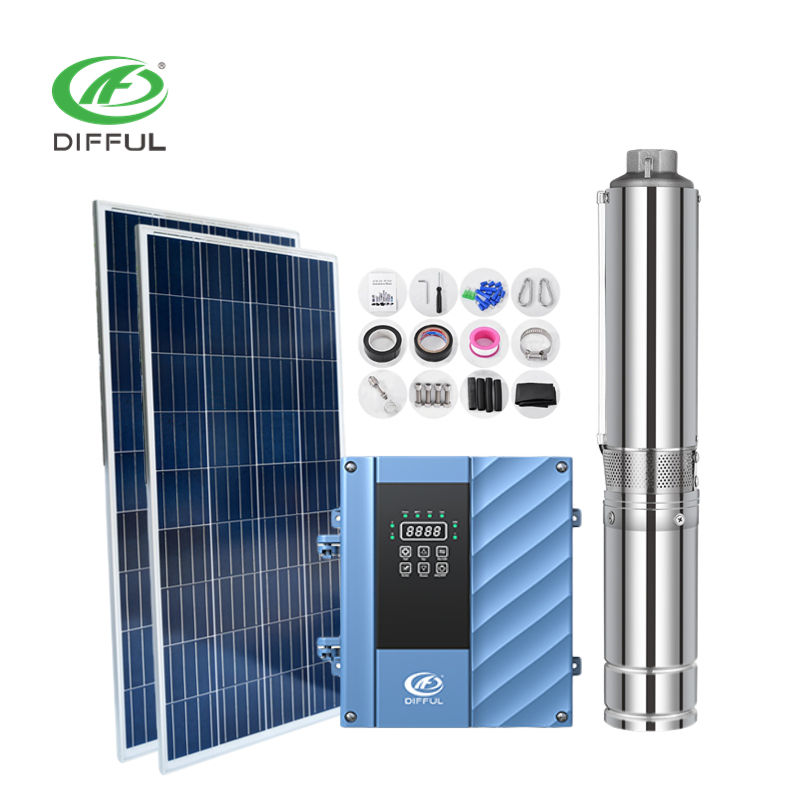

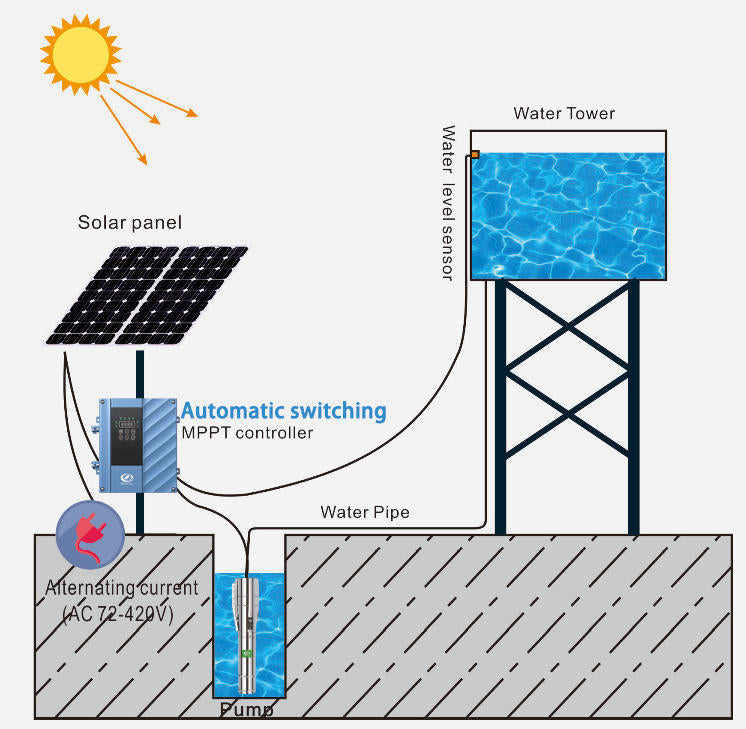

The NOVAPUMP 3HP Solar AC/DC Hybrid Submersible Pump is a heavy-duty deep-well solution for large farms, commercial agriculture, and municipal water supply. With a maximum head of 150 meters and flow up to 10,000 L/h, this system can irrigate 10-20 hectares or supply water to communities of 500-1,000 people. The hybrid AC/DC controller with integrated soft-start protects the motor while maximizing solar utilization for the lowest possible operating cost.

Technical Specifications

• Power: 3HP (2.2kW)
• Solar Input: 120-200V DC (recommended 8 x 350W panels, 2 strings of 4)
• Grid Input: 220V AC single-phase or 380V three-phase
• Max Flow Rate: 10,000 L/h (44 GPM)
• Max Head: 150 meters (492 ft)

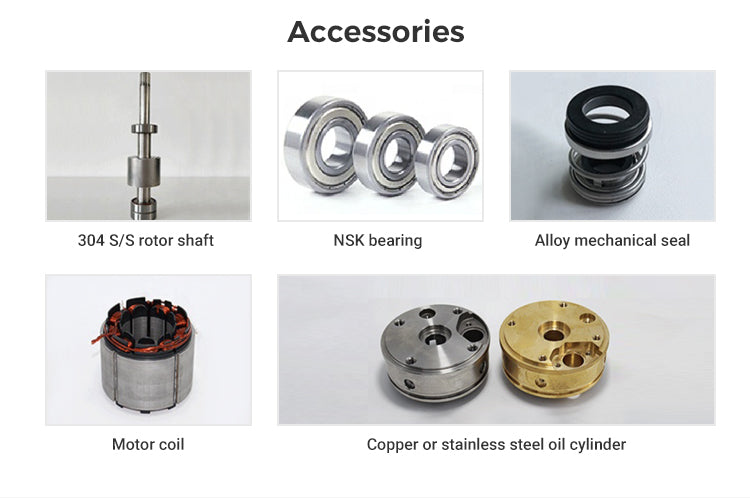

• Motor: PMSM hybrid, oil-filled, IP68, Class H (180 C) insulation
• Pump Body: 304 SS investment cast, 12-stage multistage centrifugal
• Outlet: 2 inch threaded
• Min Well Diameter: 4 inches (100mm)
• Controller: Hybrid MPPT/AC, IP65, 7-inch color touchscreen
• Controller Features: Flow estimation, kWh metering, GPRS-ready, MODBUS RTU
• Protection: Dry-run, overload, phase loss, under/over-voltage, lightning (Type 2 SPD)
• Total System Weight: 42 kg

Key Features

• 7-Inch Touchscreen Controller: Full-color display with real-time flow estimation, power graphs, and historical data logging
• Industrial PMSM Motor: Permanent magnet motor delivers 94% efficiency - 8% higher than induction motors in this power class
• GPRS Cloud Monitoring: Ready for remote pump monitoring with SMS alerts for faults, low flow, and maintenance scheduling
• Auto-Phase Correction: Automatically adjusts for phase sequence on three-phase input - no electrician needed for phasing
• Multi-Pump Capable: Controller supports master-slave configuration for up to 4 pumps in parallel for very high flow applications

Applications

Large-scale farm irrigation (10-20 hectares), municipal and community water supply, commercial greenhouse water systems, mining camp water supply, and wildlife reserve water points.

FAQs

Q: How many people can this supply with drinking water?
At 10,000 L/h and 6 hours of peak sun, the system delivers 60,000 liters/day - sufficient for approximately 1,200 people at 50L/person/day.

Q: Can I monitor the pump remotely?
Yes. Add the GPRS module for cloud-based monitoring via smartphone app. View flow rate, power consumption, well level, and fault alerts in real time.

Q: What maintenance is required?
The oil-filled motor and stainless steel pump require no routine maintenance during the 3-year warranty period. Annual controller inspection and well level check recommended.

CE & ISO 9001 Certified | 12-Month Warranty | 3-Year Motor Warranty | On-Site Commissioning Available
